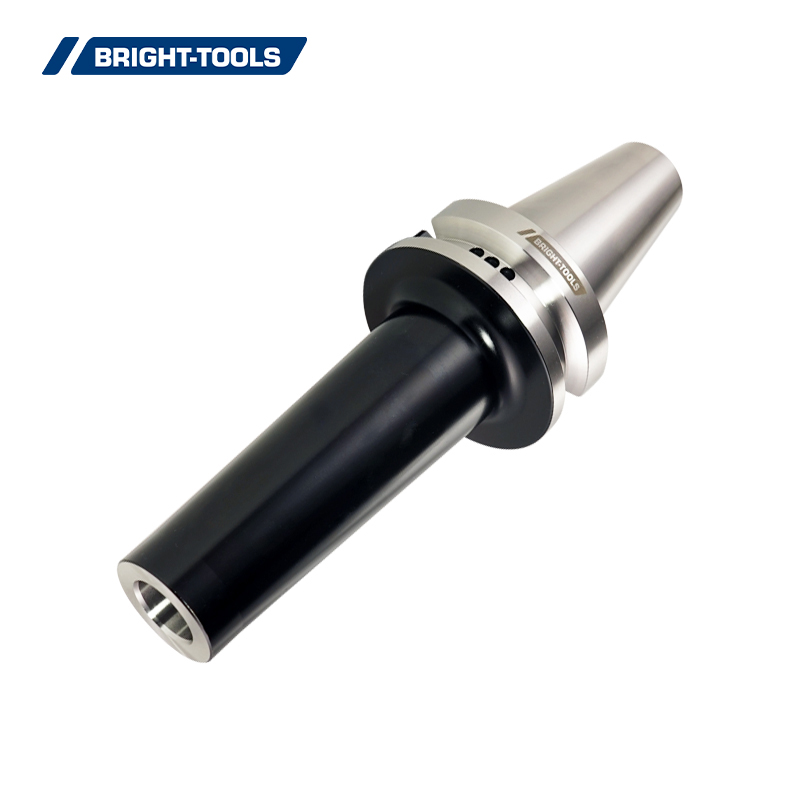

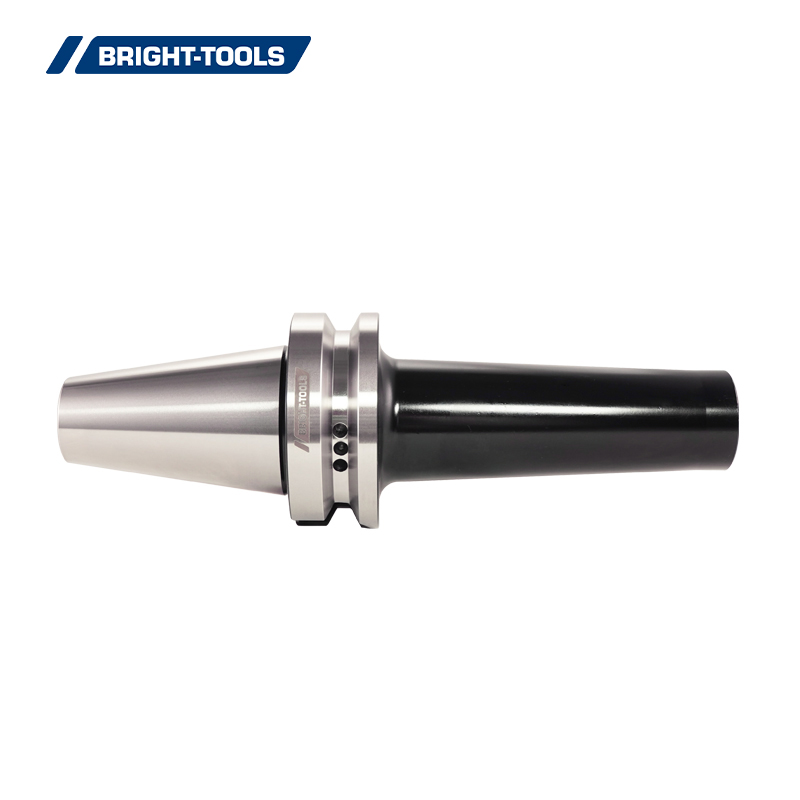

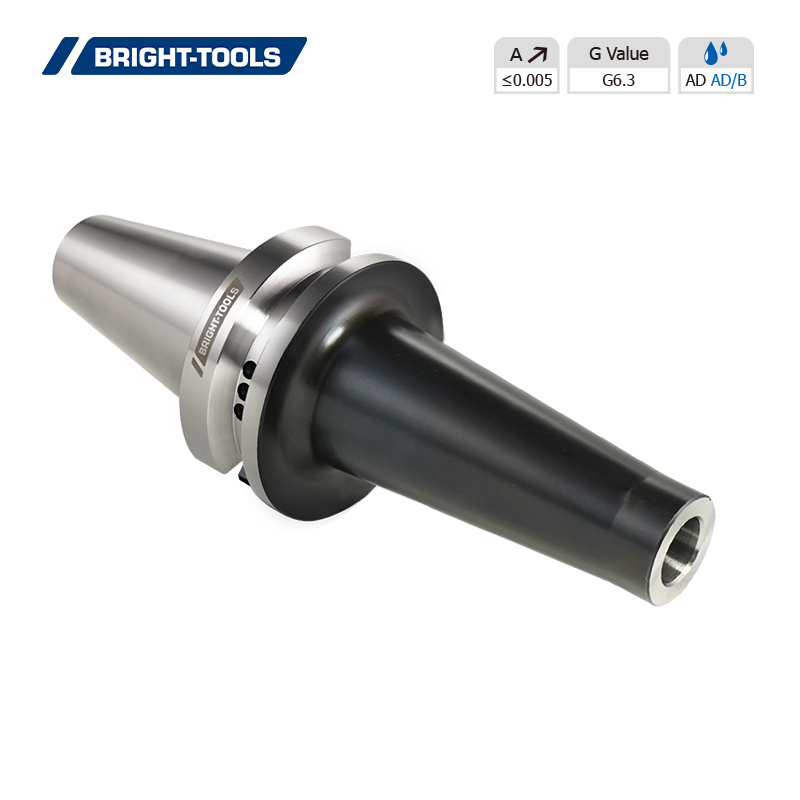

SOM 锁牙刀柄，锥柄型-BT
1、精度高。
2、刚性高，提高质量，降低消耗。
3、提高效率。
4. 便利性
|
Size |
M |
d1 |
d2 |
A |
L |
D |
|
BT40-SOM08-52 L=25 |
8 |
8.5 |
14.5 |
52 |
25 |
15 |
|
BT40-SOM08-77 L=50 |
8 |
8.5 |
14.5 |
77 |
50 |
23 |
|
BT40-SOM08-102 L=75 |
8 |
8.5 |
14.5 |
102 |
75 |
23 |
|
BT40-SOM08-127 L=100 |
8 |
8.5 |
14.5 |
127 |
100 |
25 |
|
BT40-SOM10-32 L=5 |
10 |
10.5 |
18 |
32 |
5 |
18 |
|
BT40-SOM10-52 L=25 |
10 |
10.5 |
18 |
52 |
25 |
20 |
|
BT40-SOM10-77 L-50 |
10 |
10.5 |
18 |
77 |
50 |
23 |
|
BT40-SOM10-102 L=75 |
10 |
10.5 |
18 |
102 |
75 |
28 |
|
BT40-SOM10-127 L=100 |
10 |
10.5 |
18 |
127 |
100 |
32 |
|
BT40-SOM10-177 L=150 |
10 |
10.5 |
18 |
177 |
150 |
36.5 |
|
BT40-SOM12-32 L=5 |
12 |
12.5 |
21 |
32 |
5 |
21 |
|
BT40-SOM12-52 L=25 |
12 |
12.5 |
21 |
52 |
25 |
24 |
|
BT40-SOM12-77 L=50 |
12 |
12.5 |
21 |
77 |
50 |
24 |
|
BT40-SOM12-102 L=75 |
12 |
12.5 |
21 |
102 |
75 |
31 |
|
BT40-SOM12-127 L=100 |
12 |
12.5 |
21 |
127 |
100 |
31 |
|
BT40-SOM12-152 L=125 |
12 |
12.5 |
21 |
152 |
125 |
36 |
|
BT40-SOM12-177 L=150 |
12 |
12.5 |
21 |
177 |
150 |
38 |
|
BT40-SOM16-32 L=5 |
16 |
17 |
29 |
32 |
5 |
29 |
|
BT40-SOM16-52 L=25 |
16 |
17 |
29 |
52 |
25 |
29 |
|
BT40-SOM16-77 L=50 |
16 |
17 |
29 |
77 |
50 |
34 |
|
BT40-SOM16-102 L=75 |
16 |
17 |
29 |
102 |
75 |
34 |
|
BT40-SOM16-127 L=100 |
16 |
17 |
29 |
127 |
100 |
36 |
|
BT40-SOM16-152 L=125 |
16 |
17 |
29 |
152 |
125 |
40 |
|
BT40-SOM16-177 L=150 |
16 |
17 |
29 |
177 |
150 |
42.5 |
|
|
|
|
|
|
|
|
|
BT50-SOM08-88 L=50 |
8 |
8.5 |
14.5 |
88 |
50 |
23 |
|
BT50-SOM08-138 L=100 |
8 |
8.5 |
14.5 |
138 |
100 |
25 |
|
BT50-SOM08-188 L=150 |
8 |
8.5 |
14.5 |
188 |
150 |
30 |
|
BT50-SOM10-88 L=50 |
10 |
10.5 |
18 |
88 |
50 |
23 |
|
BT50-SOM10-138 L=100 |
10 |
10.5 |
18 |
138 |
100 |
32 |
|
BT50-SOM10-188 L=150 |
10 |
10.5 |
18 |
188 |
150 |
36.5 |
|
BT50-SOM12-88 L=50 |
12 |
12.5 |
21 |
88 |
50 |
24 |
|
BT50-SOM12-138 L=100 |
12 |
12.5 |
21 |
138 |
100 |
33 |
|
BT50-SOM12-188 L=150 |
12 |
12.5 |
21 |
188 |
150 |
40 |
|
BT50-SOM16-88 L=50 |
16 |
17 |
29 |
88 |
50 |
34 |
|
BT50-SOM16-138 L=100 |
16 |
17 |
29 |
138 |
100 |
36 |
|
BT50-SOM16-188 L=150 |
16 |
17 |
29 |
188 |
150 |
42.5 |
