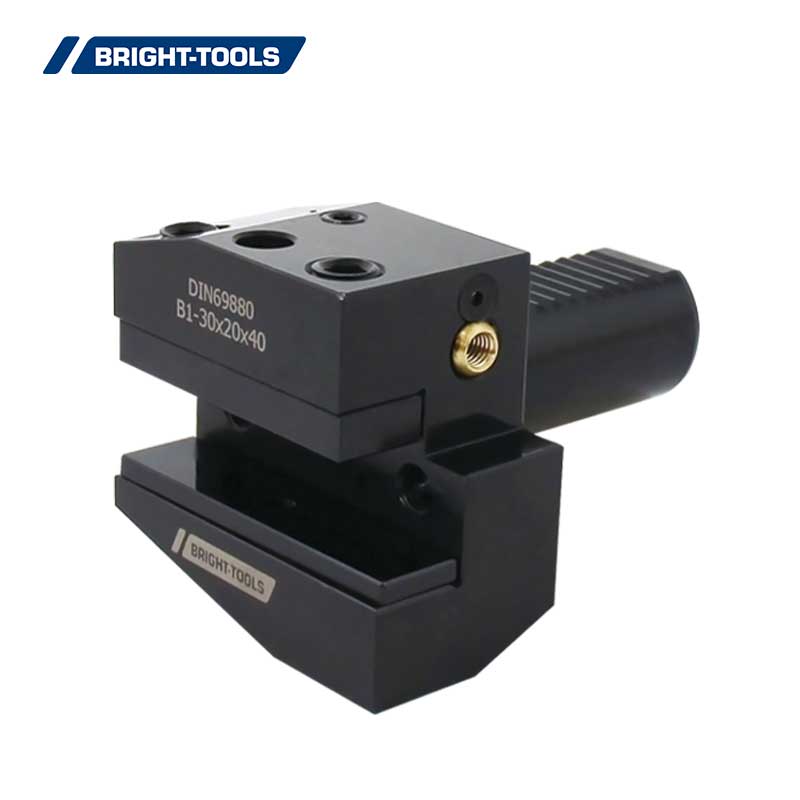

B1 短型横向右刀夹 - VDI
径向刀柄 DIN 69880，右侧，短
变型 - 设计：VDI 16 - VDI 60
VDI刀杆精磨
设置简单快捷
锯齿状夹紧系统带来刚性设计
变型 - 设计：VDI 16 - VDI 60
VDI刀杆精磨
设置简单快捷
锯齿状夹紧系统带来刚性设计
|
Size |
d1 |
b1 |
b2 |
b3 |
h1 |
h5 |
h6 |
l1 |
l2 |
|
B1-16x12x24 |
16 |
42 |
23 |
5 |
12 |
20 |
22 |
13 |
24 |
|
B1-16x12x34 |
16 |
42 |
23 |
5 |
12 |
20 |
22 |
23 |
34 |
|
B1-20x16x30 |
20 |
55 |
30 |
7 |
16/12 |
25 |
30 |
16 |
30 |
|
B1-20x16x40 |
20 |
55 |
30 |
7 |
16/12 |
25 |
30 |
26 |
40 |
|
B1-25x16x30 |
25 |
55 |
30 |
7 |
16/12 |
25 |
30 |
16 |
30 |
|
B1-25x16x40 |
25 |
55 |
30 |
7 |
16/12 |
25 |
30 |
26 |
40 |
|
B1-30x20x40 |
30 |
70 |
35 |
10 |
20/16 |
28 |
38 |
22 |
40 |
|
B1-30x20x60 |
30 |
70 |
35 |
10 |
20/16 |
28 |
38 |
42 |
60 |
|
B1-40x25x44 |
40 |
85 |
42.5 |
12.5 |
25/20 |
32.5 |
48 |
22 |
44 |
|
B1-50x32x55 |
50 |
100 |
50 |
16 |
32/25 |
35 |
60 |
30 |
55 |
|
B1-60x32x60 |
60 |
125 |
62.5 |
16 |
32/25 |
42.5 |
62.5 |
30 |
60 |
|
B1-80x40x75 |
80 |
160 |
80 |
20 |
40/32 |
55 |
80 |
40 |
75 |
